Tesuco beer boards are specially engineered to meet and exceed AS 5034. They feature a primary regulator (fully plated inside with stainless steel seat to prevent corrosion), with isolation valve, bulk inlet valve and high volume relief valve. All regulator internals are manufactured from materials that are not affected by dry CO2, wet CO2, carbonic acid or hydrolysis, ensuring exceptional reliability and long service life.

Product CodeDescription
RI1NIT3P Beer Panel Twin
Nitrogen Type 50 H/W AS5034
In 20,000kPa Out 300kPa
RI1S8P Post Mix Panel Single
CO2 Type 30 H/W AS5034
In 20,000kPa Out 800kPa
RI1S8S3P
RI1S8S3P Regulator 1 Post Mix 1 Beer
Panel Twin Type 30 H/W AS5034
In 20,000kPa Out 800/300kPa
RI1SNI8P
RI1SNI8P Post Mix Panel Single
Nitrogen Type 50 H/W AS5034
In 20,000kPa Out 800kPa
RI1T3P
RI1T3P Beer Panel Twin
CO2 Type 30 H/W AS5034
In 20,000kPa Out 300kPa
RI1T4P Beer Panel Twin
CO2 Type 30 H/W AS5034
In 20,000kPa Out 400kPa

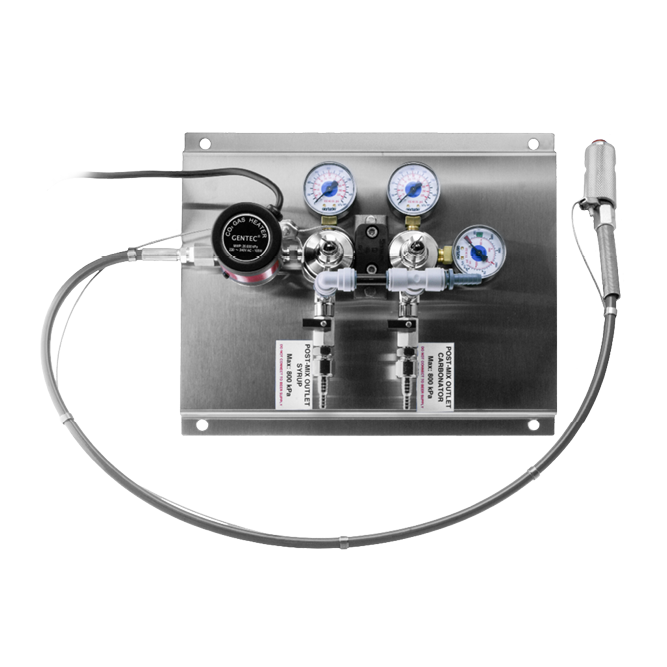

RI1T8HP
RI1T8HP Post Mix Panel Twin Heated
CO2 Type 30 H/W AS5034
In 20,000kPa Out 800kPa

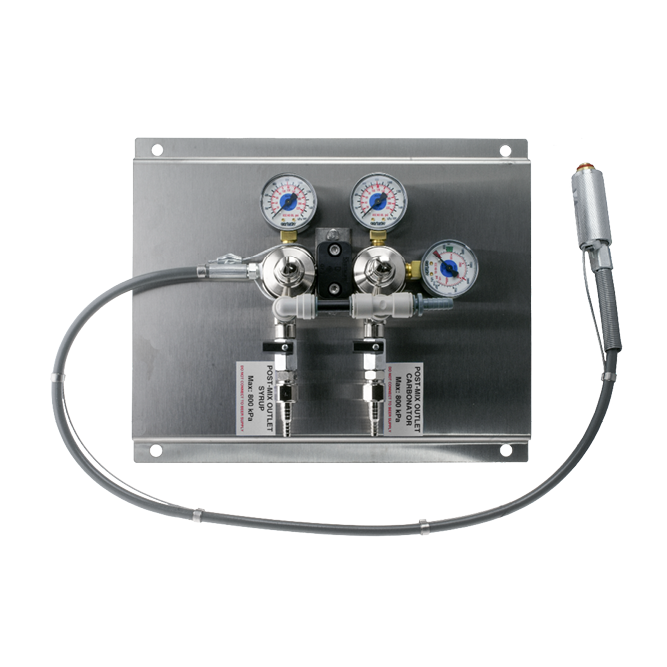

RI1T8P
RI1T8P Post Mix Panel Twin
CO2 Type 30 H/W AS5034
In 20,000kPa Out 800kPa

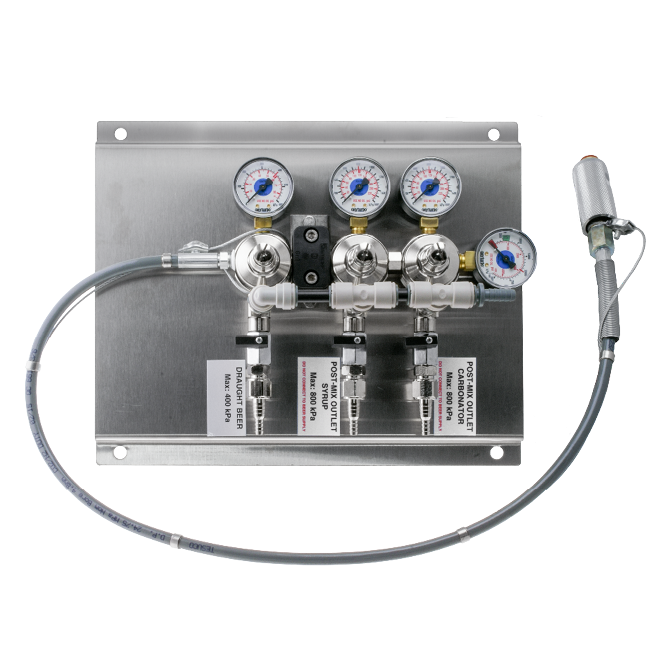

RI1T8S3P
RI1T8S3P 2 Post Mix 1 Beer Panel
Type 30 H/W AS5034
In 20,000kPa Out 800/300kPa
RI1TR3P Triple Beer Panel
Type 30 H/W AS5034
In 20,000kPa Out 300kPa
TE1S Beverage Board, Tesuco, CO2
1 Secondary Regulator
In 2,400kPa out 400kPa
TE1S3 Beverage Board, Tesuco, CO2
1 Secondary Regulator
In 2,400kPa out 300kPa
TE2S Beverage Board, Tesuco, CO2
2 Secondary Regulator
In 2,400kPa out 400kPa
TE2S3 Beverage Board, Tesuco, CO2
2 Secondary Regulator
In 2,400kPa out 300kPa
TE3S Beverage Board, Tesuco, CO2
3 Secondary Regulator
In 2,400kPa out 400kPa
TE3S3 Beverage Board, Tesuco, CO2
3 Secondary Regulator
In 2,400kPa out 300kPa

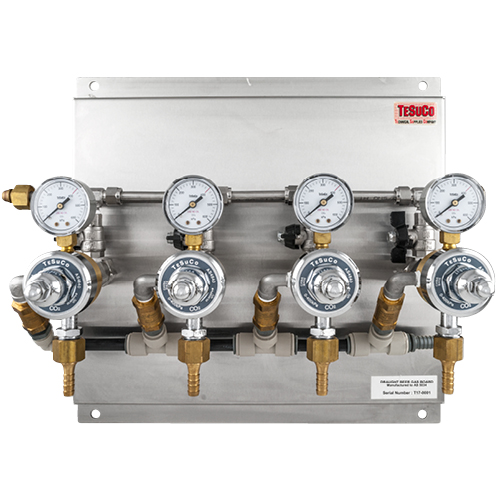

TE4S
TE4S Beverage Board, Tesuco, CO2
4 Secondary Regulator
In 2,400kPa out 400kPa
TE4S3 Beverage Board, Tesuco, CO2
4 Secondary Regulator
In 2,400kPa out 300kPa
TEP Beverage Board, Tesuco, CO2
Primary Board Only
In 20,000kPa Out 1,000kPa

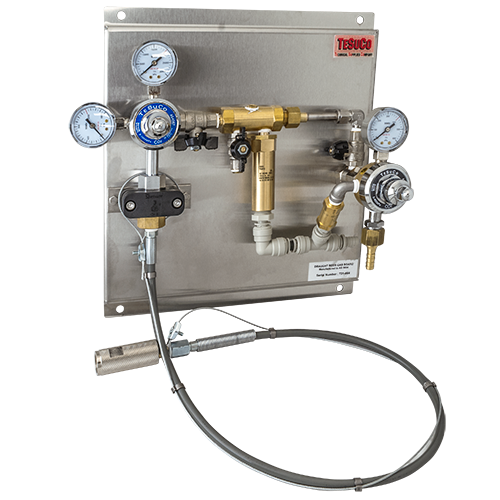

TEP1S
TEP1S Beverage Board, Tesuco, CO2
Primary, 1 Secondary Regulator
In 20,000kPa Out 400kPa
TEP1S3
TEP1S3 Beverage Board, Tesuco, CO2
Primary, 1 Secondary Regulator
In 20,000kPa Out 300kPa

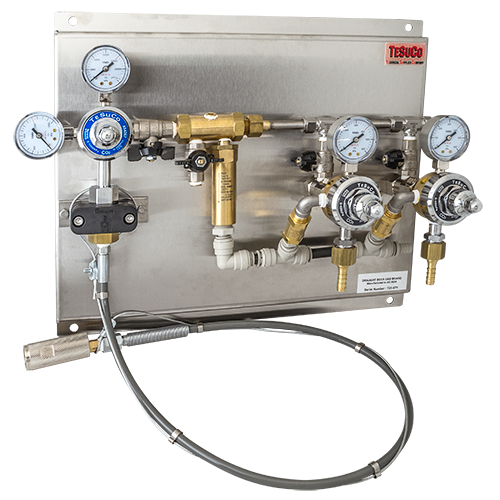

TEP2S
TEP2S Beverage Board, Tesuco, CO2
Primary, 2 Secondary Regulator
In 20,000kPa Out 400kPa
TEP2S3
TEP2S3 Beverage Board, Tesuco, CO2
Primary, 2 Secondary Regulator
In 20,000kPa Out 300kPa
TEP2SN2 Beverage Board, Tesuco, N2
Primary, 2 Secondary Regulator
In 20,000kPa Out 400kPa

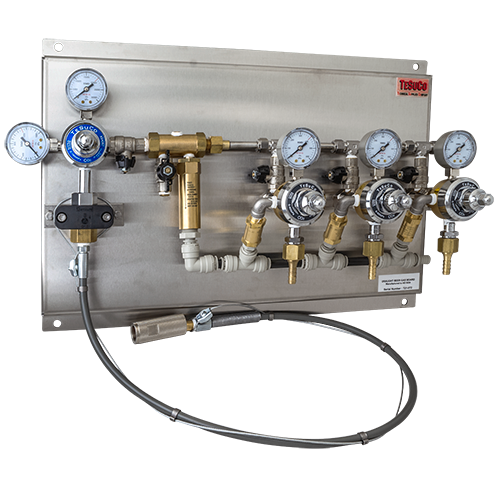

TEP3S
TEP3S Beverage Board, Tesuco, CO2
Primary, 3 Secondary Regulator
In 20,000kPa Out 400kPa
TEP3S3
TEP3S3 Beverage Board, Tesuco, CO2
Primary, 3 Secondary Regulator
In 20,000kPa Out 300kPa
TEP4S Beverage Board, Tesuco, CO2
Primary, 4 Secondary Regulator
In 20,000kPa Out 400kPa
TEP4S3 Beverage Board, Tesuco, CO2
Primary, 4 Secondary Regulator
In 20,000kPa Out 300kPa
