PRODUCT LAUNCH - Heat Sink Regulator

Where high flows of CO2 and CO2/Argon shielding gas mixtures are used, there is a possibility of the regulator freezing due to excess withdrawal or cold ambient temperatures.

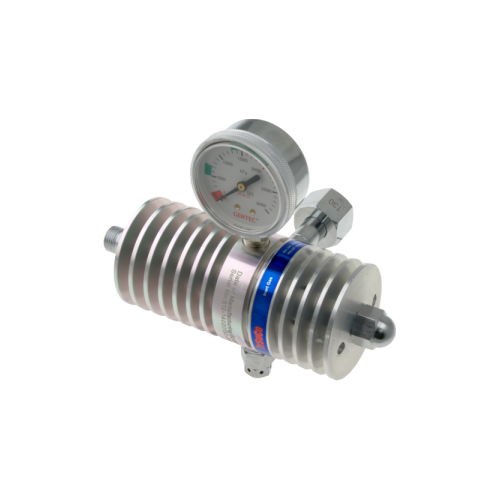

Tesuco has added a new gas regulator to the range that has a body made of lightweight aluminium and is machined in a heat sink fin style. This is to allow the maximum amount of ambient air temperature to "warm" the body preventing the regulator freezing for flows up to 100 Litres per minute.RG1SCDHS.pngThe outlet is a standard 5/8-18 UNF RH connection so a combination of flowmeters and T pieces can be fitted. Eight different standard models are available to suit various combinations of flowmeter attachment.

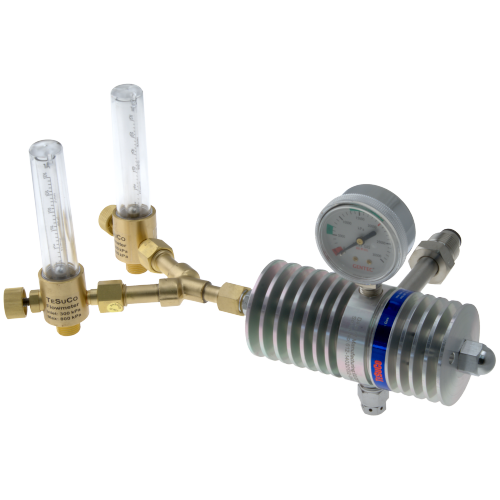

RG1SARHS25T.pngThese heat sink regulators have a working pressure of 20,000 kPa and a set outlet pressure of 300 kPa.  For further information, you may view our brochure by following this link.

Mark Stadtmiller
