High Pressure Flexible Hoses

High pressure flexible hoses are used to connect the gas supply to a regulating device such as a semi-automatic manifold or supply panel.  They are available with a PTFE lined inner hose, or in full stainless steel.

GENTEC PTFE Lined

Gallery

Detailed below is the Gentec range of PTFE lined high pressure, high purity gas supply hoses.  They are suitable for use with high purity gases up to 6.0 (99.9999%) purity.

Product CodeDescription

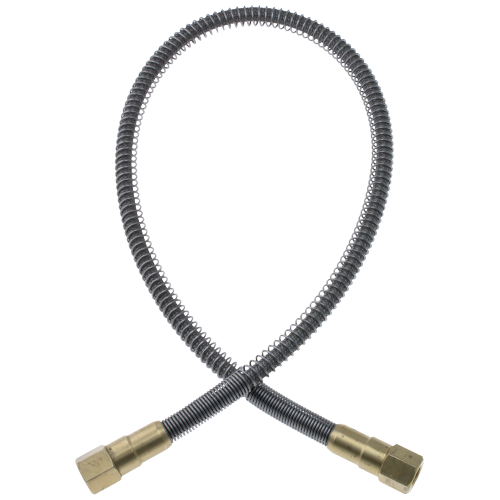

GHF09WP
GHF09WP Flexible Lead Stainless Steel
PTFE Lined 900mm
1/4" NPT

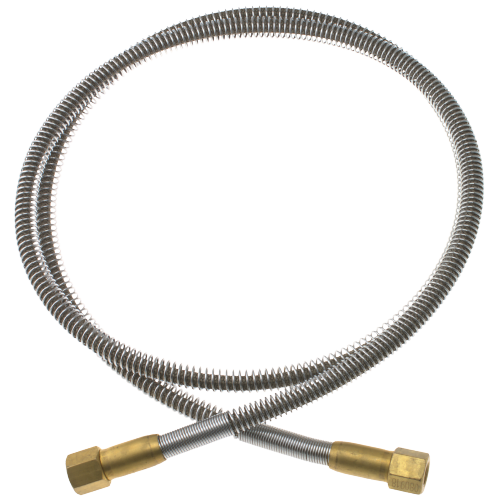

GHF20WP
GHF20WP Flexible Lead Stainless Steel
PTFE Lined 2,000mm
1/4" NPT

GENTEC Full Stainless Steel

Gallery

Detailed below is the Gentec range of full stainless high pressure, high purity gas supply hoses. They are suitable for use with high purity gases up to 6.0 (99.9999%) purity. These hoses are also suitable for toxic and corrosive gases and gas mixtures.

Product CodeDescription

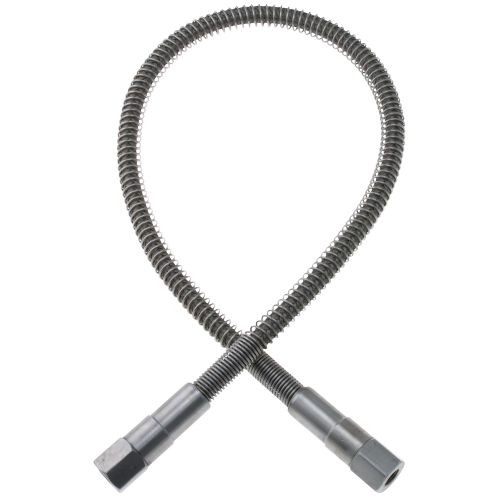

GHF09WS
GHF09WS Flexible Lead Stainless Steel
Stainless Steel Lined 900mm
1/4" NPT

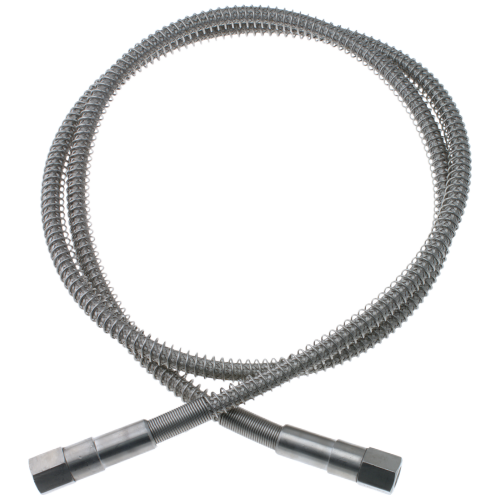

GHF20WS
GHF20WS Flexible Lead Stainless Steel
Stainless Steel Lined 2,000mm
1/4" NPT

DruVa Flexible Hoses

Gallery

Detailed below is the DruVa range of flexible high purity hoses.

Product CodeDescription

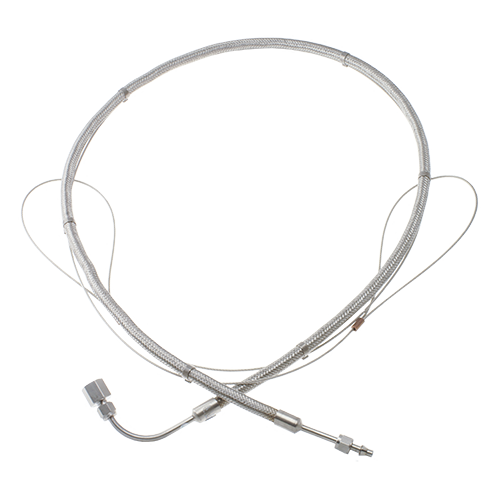

DHF15W
DHF15W Flexible Hose Stainless Steel
1500mm 1/4" NPT
