Semi-Automatic Manifolds & Systems

The semi-automatic manifold range is designed to operate on single cylinders, cylinder packs, liquid vessels or combinations of them. They are designed to provide a continuous supply of gas, automatically changing from an empty bank to a full one, thus avoiding interruption of gas supply to the downstream pipeline and equipment.

The fully automatic manifold range is designed to operate on single cylinders, cylinder packs, liquid vessels or combinations of them. They are designed to provide a continuous supply of gas, automatically changing from an empty bank to a full one and then back again when the empty side is re-supplied, without the manifold being re-set, thus avoiding interruption of gas supply to the downstream pipeline and equipment. They are ideal for Laser applications.

Semi-Automatic Manifolds

 Gallery

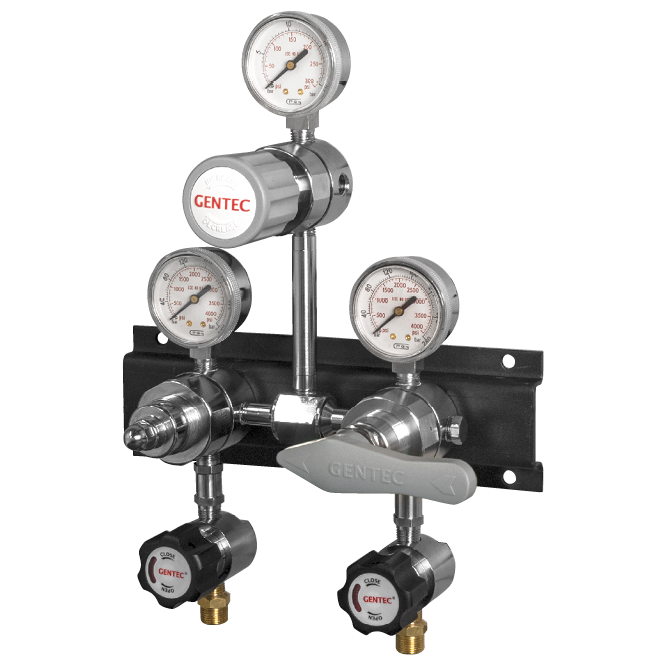

The Semi-Automatic Panel is available as an individual item. It consists of two high pressure regulators and a line pressure regulator, all with pressure gauges. The inlets are fitted with non-return valves and isolation valves (with OPEN and CLOSE windows) as required by the standard. A lever on the right hand regulator indicates the supply side and requires to be re-set on each changeover. Accessories such as safety relief valve / Flashback arrestor units and out of gas alarm systems can be added.

Product CodeDescriptionPrice
GMSACAI
GMSACAI Gentec Semi-Automatic Manifold
Chrome Plated Air
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACAR
GMSACAR Gentec Semi-Automatic Manifold
Chrome Plated Argon
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACCD
GMSACCD Gentec Semi-Automatic Manifold
Chrome Plated Carbon Dioxide
In: 20,000 kPa Out: 1360 k 		Login
GMSACCDH Gentec Semi-Automatic Manifold
CO2 High Flow
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACFG
GMSACFG Gentec Semi-Automatic Manifold
Chrome Plated Fuel Gas
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACHEH Gentec Semi-Automatic Manifold
Helium High Flow
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACIG
GMSACIG Gentec Semi-Automatic Manifold
Chrome Plated Inert Gas
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACIGH Gentec Semi-Automatic Manifold
Inert Gas High Flow
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACNI
GMSACNI Gentec Semi-Automatic Manifold
Chrome Plated Nitrogen
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACNIH Gentec Semi-Automatic Manifold
Nitrogen High Flow
In: 20,000 kPa Out: 1360 kPa 		Login
GMSACOX
GMSACOX Gentec Semi-Automatic Manifold
Chrome Plated Oxygen
In: 20,000 kPa Out: 1360 kPa 		Login

Semi-Automatic Manifold Systems

The Semi-Automatic Panel is available combined with cylinder rails and connection leads to form a manifold system.
